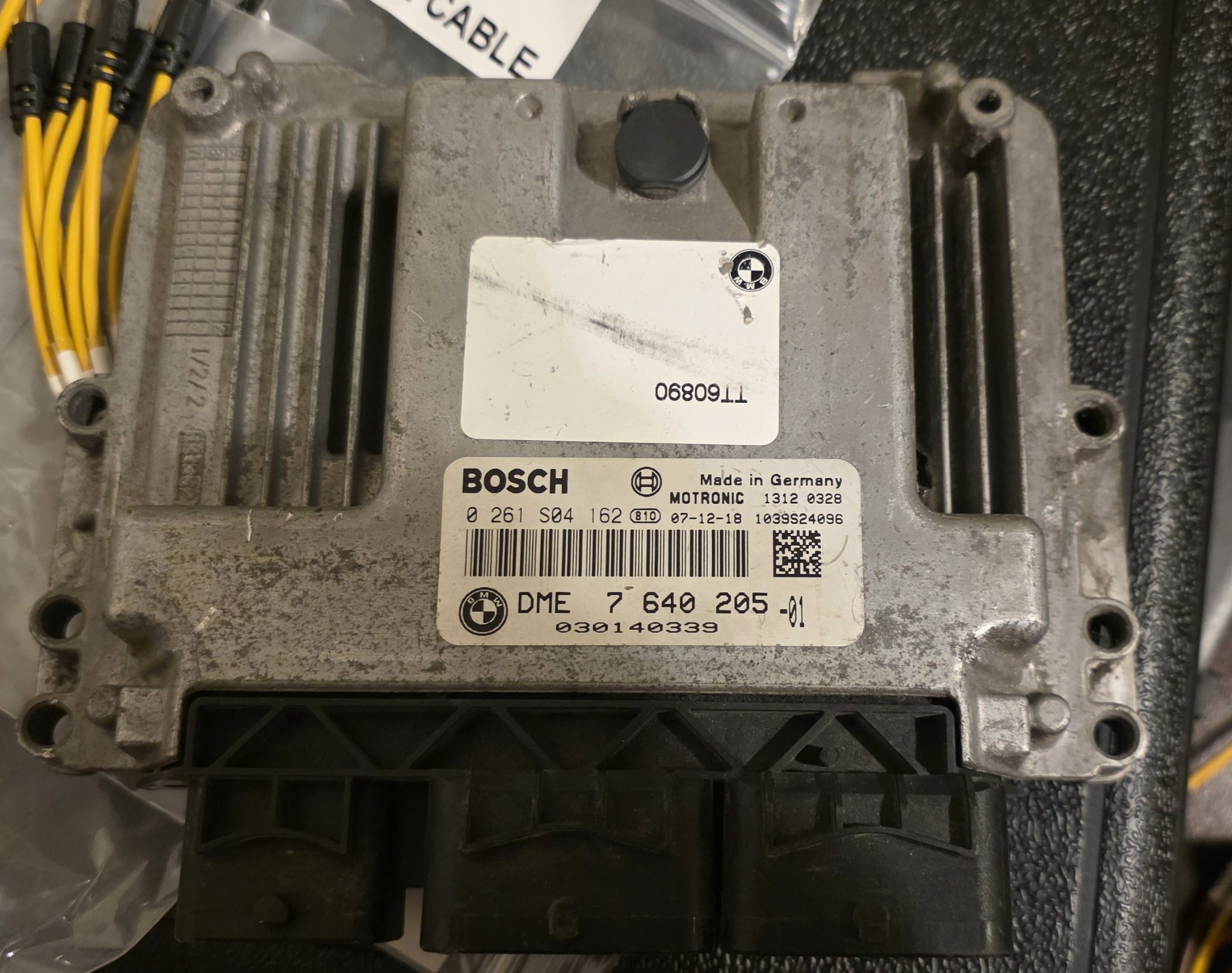

This is a real job from the bench, not a theory post. A Mini Cooper came in with a Bosch MEV17.2 (TC1766) ECU that needed to be read on the bench — no car present, just the module on the desk. Here is exactly how it went.
The Tools
- OBDSTAR DC706 tablet — the main unit for ECU/TCU work

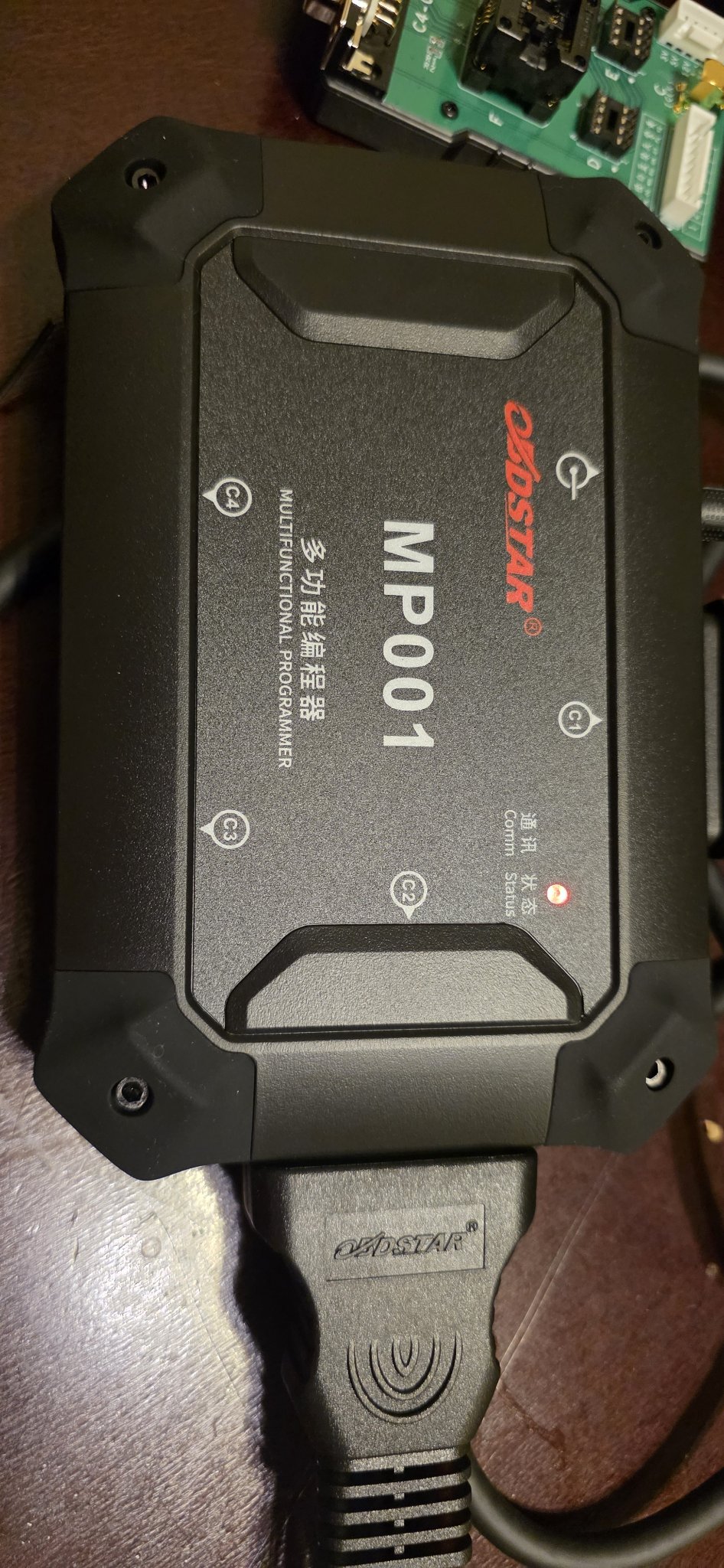

- OBDSTAR MP001 multifunction programmer — handles the bench-mode connection
- Bench cable set wired to the ECU connector per the DC706 pinout guide
The Process

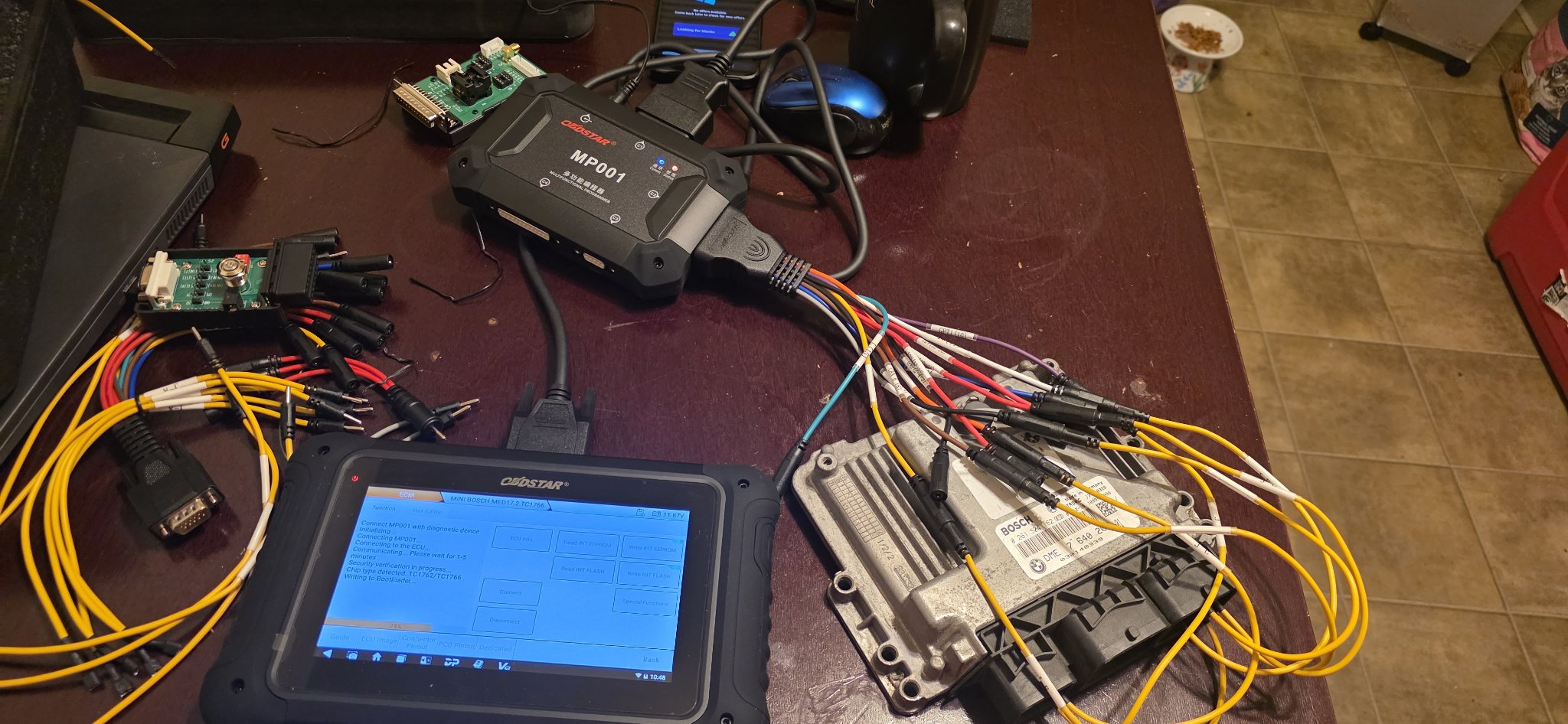

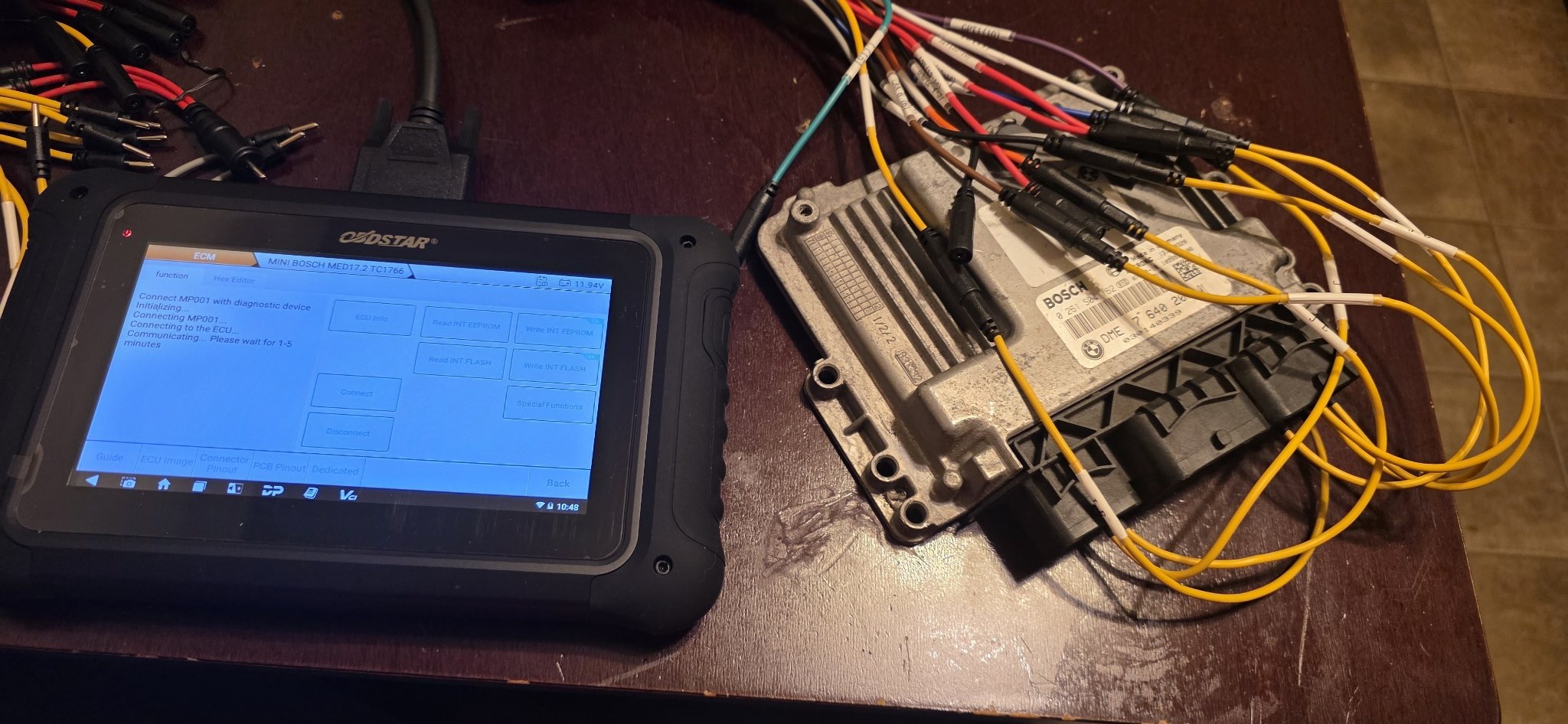

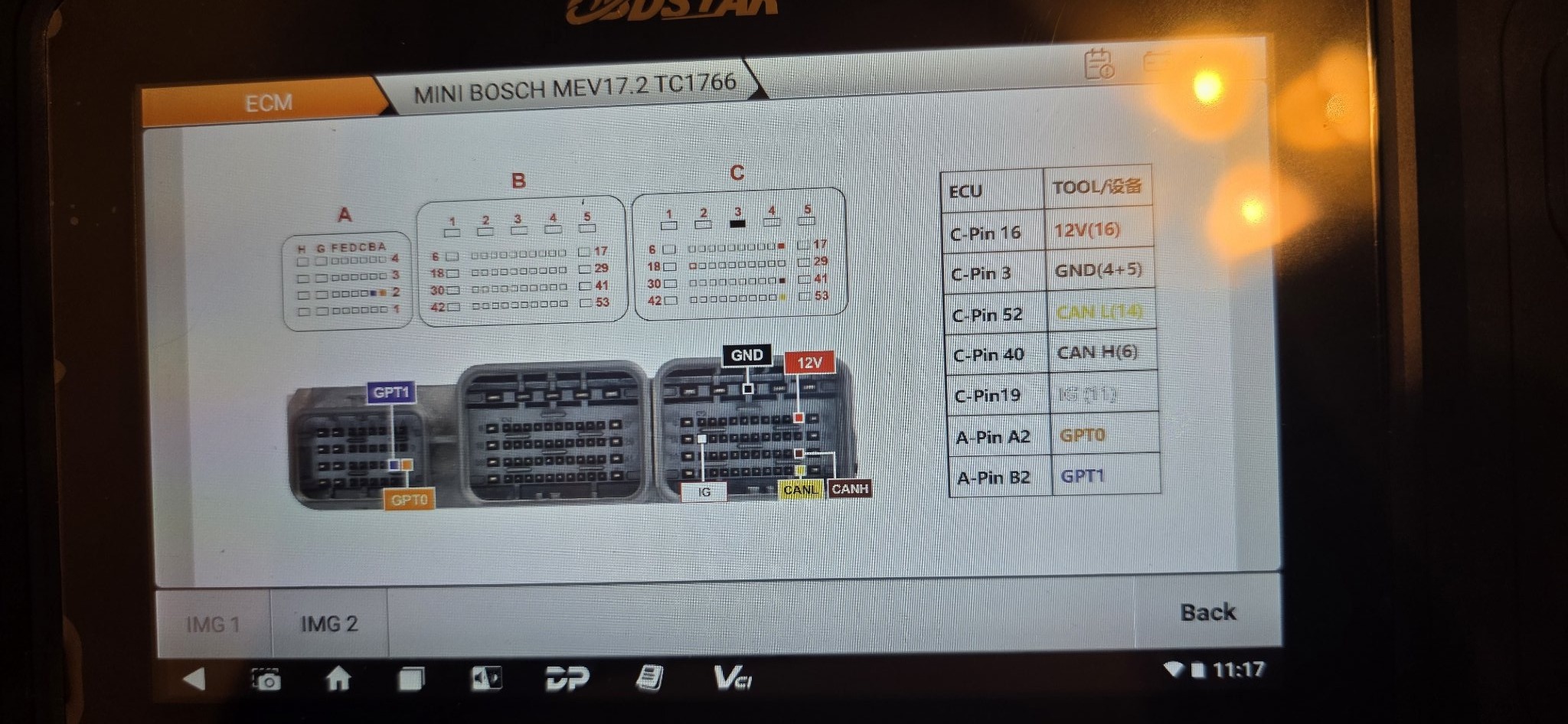

With the ECU wired on the bench, I connected the MP001 to the DC706, then went to ECM and selected MINI BOSCH MEV17.2 TC1766. The DC706 displays the full bench pinout on screen — just follow the GPT0/GPT1, 12V, GND, CANH and CANL wiring shown. The tablet walks you through it: connect, communicate with the ECU (give it 1–5 minutes), then read INT EEPROM and INT FLASH. Once the reads completed, I ran the Read ISN Code function under Special Functions.
The Result

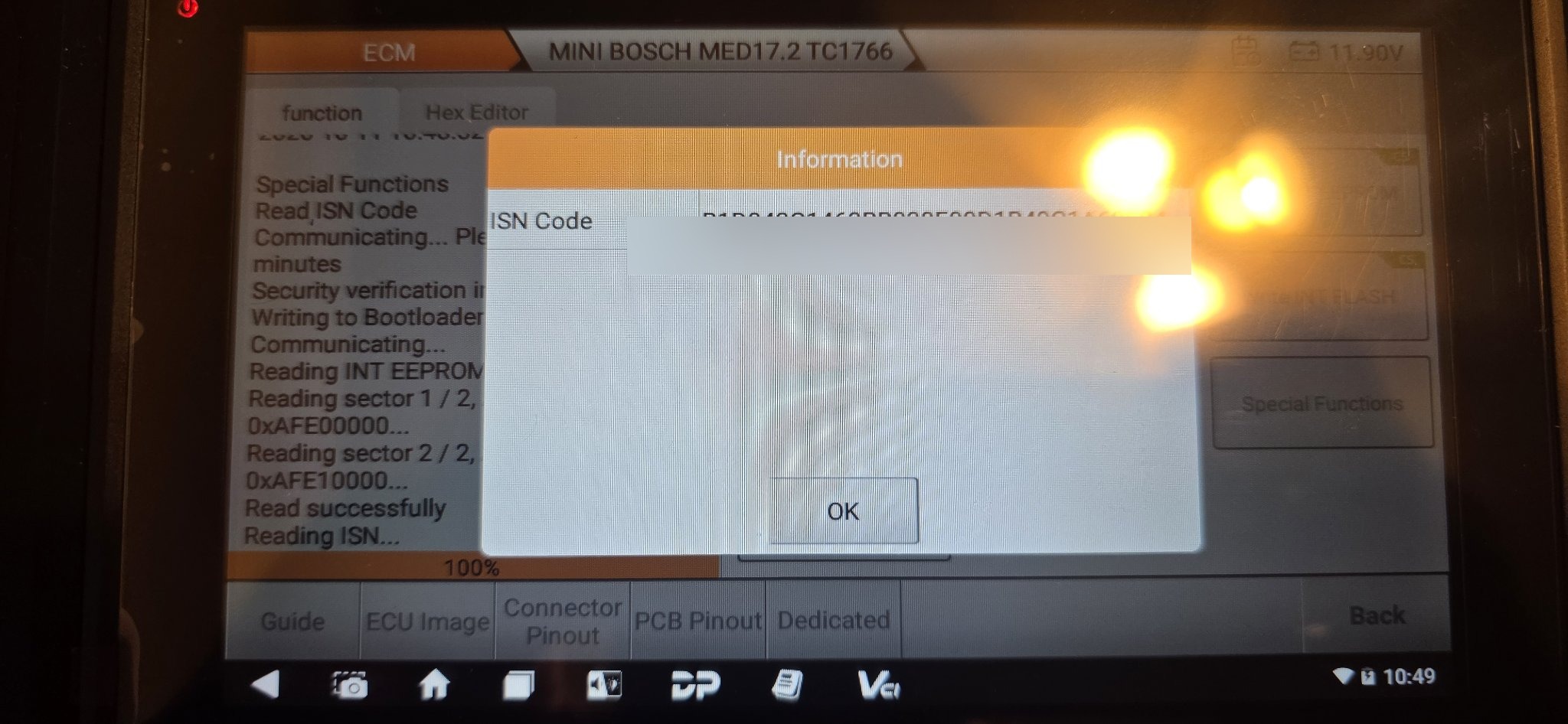

ISN read successfully — 100%, first try. The whole bench session ran clean with no communication errors, which is exactly what you want when a customer’s module is on your desk.
Why Bench Mode Matters
Bench reading means the car doesn’t need to be in your shop. The customer mails the ECU, you read it on the desk, done. This is the backbone of a mail-in module service — and the DC706 + MP001 combo is built for exactly that workflow.
